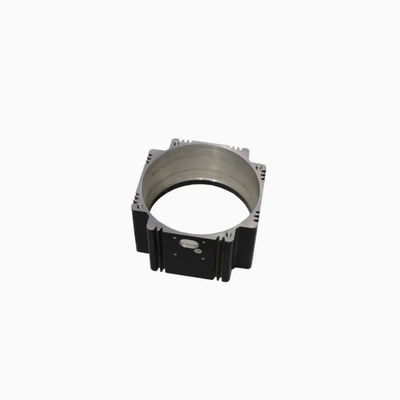

Anodized Electrophoresis Anti Scratch 6063 T5 Aluminum Cylinder / Electrical Motor Shell
Electric motor housing aluminum extrusion, also known as aluminum alloy motor shell or servo motor housing aluminum profiles, designed for industrial applications.
Product Features

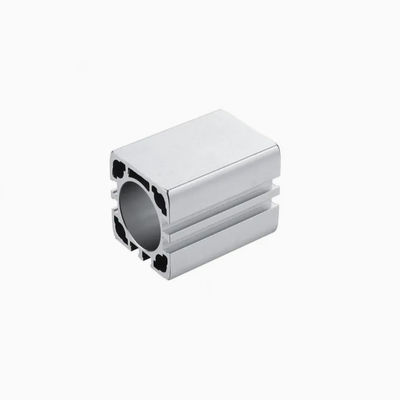

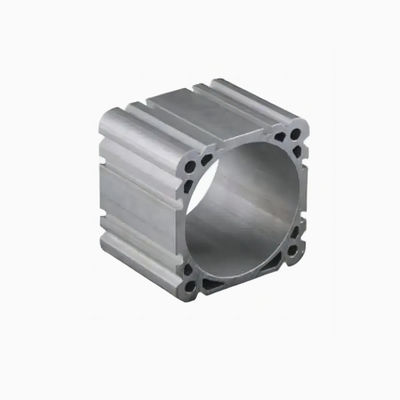

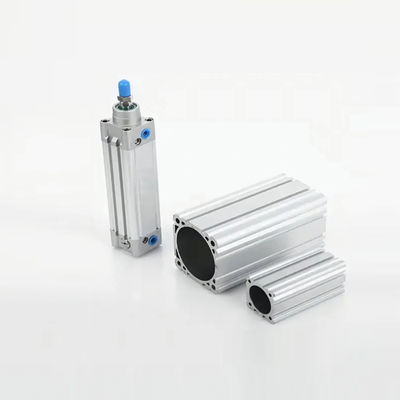

- Material: Aluminum Alloy Extrusion Anodized Aluminium Profile for Pneumatic Cylinder
- Alloy temper options: 6063, 6061, 6005, 6060, 6082, T5, T6, T66
- Manufacturing standards: EN755, ASTMB221, DIN Standard
- Surface treatment options: Mill finish, Anodizing, Powder coated, Brushed
- Applications: Industrial equipment, Construction components
- Key advantages:
- Pure 99.7% aluminum materials without scrap content
- OEM services including custom die design and manufacturing
- Customizable surface treatments to meet specific requirements
- Strict quality control processes ensure superior quality
- Hard alloy composition extends product lifespan
- Safe and convenient packaging solutions
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Technical Specifications
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
Mechanical Properties:
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| 6063 | T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Technical Support
Our comprehensive support includes:
- Custom design services including CAD drawings and 3D models
- Professional R&D team for design analysis and optimization
- Complete "one-stop" production from design to surface treatment
- Strict quality control throughout manufacturing process
Manufacturing Capabilities
Extrusion: 44 aluminum extrusion lines with maximum outer diameter capacity of 350mm, including a 6800 ton extruder for profiles up to 600mm diameter.
Anodizing: 6 production lines producing uniform oxidation films in various colors including silver, black, gold, champagne, and imitation steel.
Painting: 4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints.
CNC Machining: Advanced equipment including 12 PRATIC machining centers, Wegoma cutting machines, 30 punching machines (50-100 ton), and 10 stretch bending machines.
Packing and Shipping
Finished products are manually packaged with strict warehouse management procedures ensuring quality control before delivery.
Certifications
Company History
2004: Recognized Brand of the Building Industry Material Market
2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Became innovative producer and supplying partner for BOSCH (Germany)
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers
2023: Expanding overseas distributor network
Notable Projects
Soccer City Stadium, Johannesburg: Supplied aluminum components for Africa's largest 94,000-seat stadium.
Other Projects: Collaboration with Nordic trailer manufacturer Lobster Trailers and supply of aluminum legs for school furniture projects.
